Ring load cell??0.3T 1T 10T 20T 30T 45T
Model: YGXD133
Features & Applications:
Thru hole structure
Low deflection tension and compression load cell with metal foil strain gauge technology, made of stainless steel.
Suitable for force measurement in limited spaces.
Widely used for industrial measurement and control, R&D and other applications.
Capacity: 0.3~45T
Load Direction

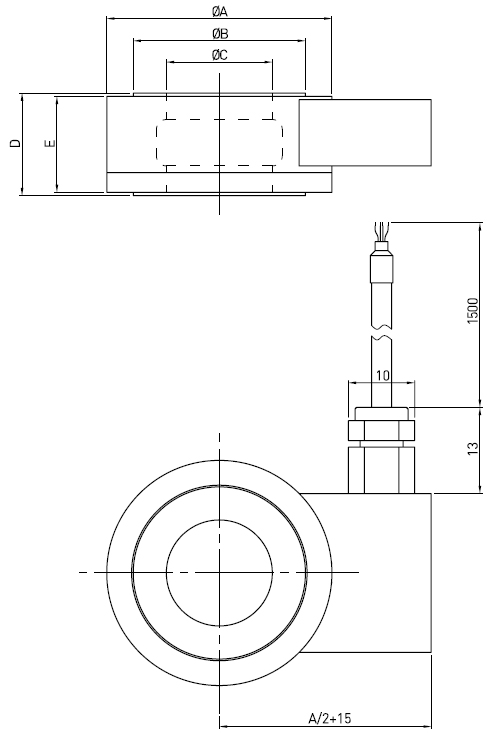

Dimensions(mm):
|
SIZE(mm)
CAP (t)
|
A
|
B
|
C
|
D
|
E
|
Material
|
Weight
|
|
0.3, 0.5, 1, 2
|
34
|
24
|
16
|
15
|
14
|
Stainless steel
|
0.1kg
|
|
5, 10, 15, 20
|
69
|
54
|
32
|
50
|
49
|
1.1kg
|
|
10,20, 30, 45
|
95
|
78
|
50
|
50
|
49
|
1.9kg
|
Specification
|
Rated output
|
1.0±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
≤5 % F.S.
|
|
Hysteresis
|
1 % F.S.
|
|
Repeatability
|
0.5% F.S.
|
|
Creep (30min)
|
0.5 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
385±30Ω
|
|
Output impedance
|
350±5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
5 V
|
|
Maximum excitation
|
10 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø3×1500 mm
|
|
Protection class
|
IP65
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
